Spectroelectrochemical cell

The SEC-C and SEC-C05 Thin Layer Quartz Glass cells are renewed. Now it is frosted and only the optical path area is transparent.


Thin Layer Quartz Glass cell

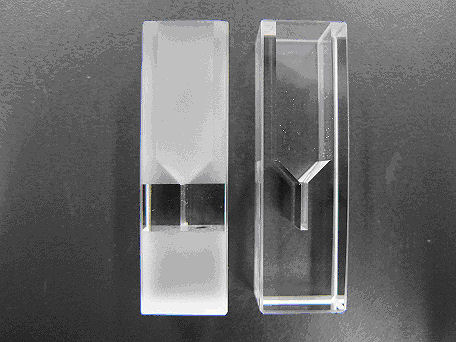

Right: previous SEC-C Thin Layer Quartz Glass cell; Left: new SEC-C Thin Layer Quartz Glass cell (frosted with a tansparent window).

Features for the SEC-C Thin Layer Quartz Glass cell (frosted with a transparent window)
– Reduce the effects of stray light
– Make possible to examine the change of the spectrum in the thin layer portion
– Resistance to scratch


↑pagetop

Comparison of the Spectrum

Absorbance Spectrum was measured for the comparison of both types of the Thin Layer Quartz Glass cell.



Comparison of absorbance spectrum




In the comparison of the absorbance spectrum performed in 1 mM Potassium ferricyanide using SEC-C Thin Layer Quartz Glass cell (SEC-C) and SEC-C Thin Layer Quartz Glass cell (frosted with a tansparent window) (SEC-C-a), in which there are no difference between both quartz glass cell, frosted or not.
