Please click on hyperlinks for usage instructions.

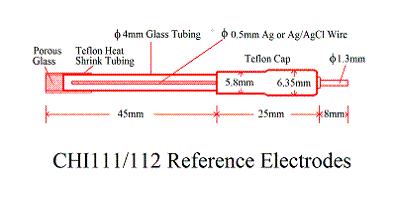

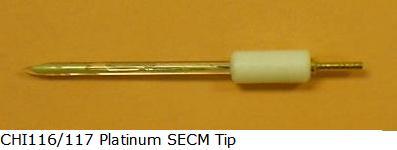

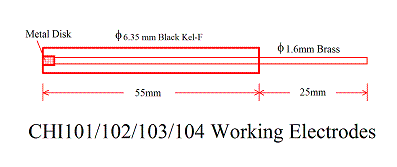

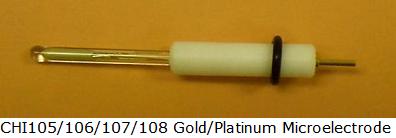

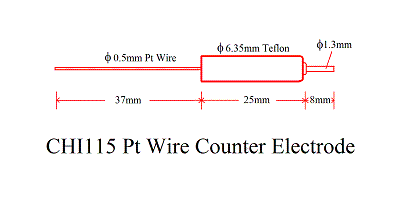

Part No. Description Unit CHI101 2 mm dia. Gold Working Electrode 1 CHI101P 2 mm dia. Gold Working Electrode 3/pk CHI102 2 mm dia. Platinum Working Electrode 1 CHI102P 2 mm dia. Platinum Working Electrode 3/pk CHI103 2 mm dia. Silver Working Electrode 1 CHI104 3 mm dia. Glassy Carbon Working Electrode 1 CHI104P 3 mm dia. Glassy Carbon Working Electrode 3/pk CHI105 12.5 mm dia. Gold Microelectrode 1 CHI105P 12.5 mm dia. Gold Microelectrode 3/pk CHI106 25 mm dia. Gold Microelectrode 1 CHI106P 25 mm dia. Gold Microelectrode 3/pk CHI107 10 mm dia. Platinum Microelectrode 1 CHI107P 10 mm dia. Platinum Microelectrode 3/pk CHI108 25 mm dia. Platinum Microelectrode 1 CHI108P 25 mm dia. Platinum Microelectrode 3/pk CHI111 Ag/AgCl Reference Electrode 1 CHI111P Ag/AgCl Reference Electrode 3/pk CHI112 Non-Aqueous Ag/Ag+ Reference Electrode 1 1 CHI112P Non-Aqueous Ag/Ag+ Reference Electrode 1 3/pk CHI115 Platinum Wire Counter Electrode 1 CHI116 10 mm dia. Platinum SECM Tip 1 CHI116P 10 mm dia. Platinum SECM Tip 3/pk CHI117 25 mm dia. Platinum SECM Tip 1 CHI117P 25mm dia. Platinum SECM Tip 3/pk CHI120 Electrode Polishing Kit 2 1 CHI125A Polished, Bounded, Mounded 100A Ti + 1000 A Gold Crystal for EQCM 1 CHI127 EQCM Cell 1 CHI128 Reference Electrode for EQCM Cell 1 CHI129 Pt Wire Counter Electrode for EQCM Cell 1 CHI130 Thin-Layer Flow Cell 1 CHI131 GC Working Electrode for Flow Cell 1 CHI132 Au Working Electrode for Flow Cell 1 CHI133 Pt Working Electrode for Flow Cell 1 CHI134 Reference Electrode for Flow Cell 1 CHI135 25 mm Spacer for Flow Cell 4/pk CHI140A Spectroelectrochemical Cell 1 CHI150 Calomel Reference Electrode 1 CHI151 Mercury/Mercurous Sulfate Reference Electrode 1 CHI152 Alkaline/Mercurous Oxide Reference Electrode 1 CHI172-Model # Electrode leads for a particular instrument model number 1

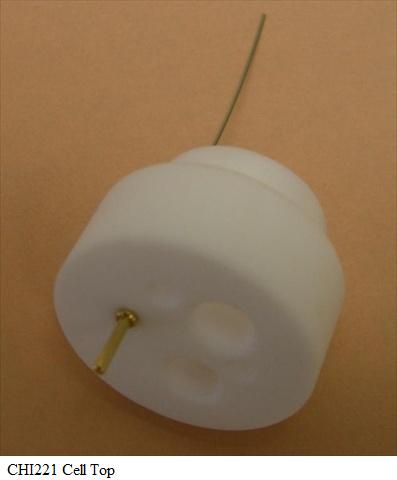

Part No. Description Unit CHI200 Picoamp Booster and Faraday Cage 3 1 CHI201 Picoamp Booster 1 CHI202 Faraday Cage 1 CHI220 Simple Cell Stand 4 1 CHI221 Cell Top (including Pt wire counter electrode, not a replacement part for the CHI200 cell stand) 5 1 CHI222 Glass Cell 1 CHI223 Teflon Cap 5 1 002047 IDA Gold Electrode 1 002048 IDA Platinum Electrode 1 002049 IDA Carbon Electrode 1 012034 CS-3 Remote Controllable Cell Stand 1 011343 QCM Flow Cell 1 TE100 Printed Electrodes (3-electrodes) 40/pk SE101 3mm dia. Printed carbon electrode 40/pk

Notes:

1. A Ag⁺ solution (typical 10 mM) should be prepared with the supporting electrolyte and AgNO₃ (not included). This solution is then filled into the reference electrode compartment using a syringe (not included). The instructions will come with the components.

2. The electrode polishing kit contains 1 bottle of 1.0 micron Alpha alumina powder, 1 bottle of 0.3 micron Alpha alumina powder, 3 bottles of 0.05 micron Gamma alumina powder, 2 glass plates for polishing pads, 5 pieces of 73 mm diameter 1200 grit Carbimet disks (grey in color), 5 pieces of 73 mm diameter Mastertex polishing pads (white in color), and 10 pieces of 73 mm diameter Microcloth polishing pads (brown in color).

3. Picoamp Booster and Faraday Cage allows the current measurement down to 1 pA. It is fully automatic and compatible with Model 6xxC and 7xxC series instruments. However, it only works for the primary channel of the 7xxC series .

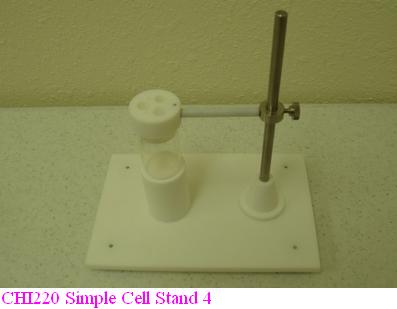

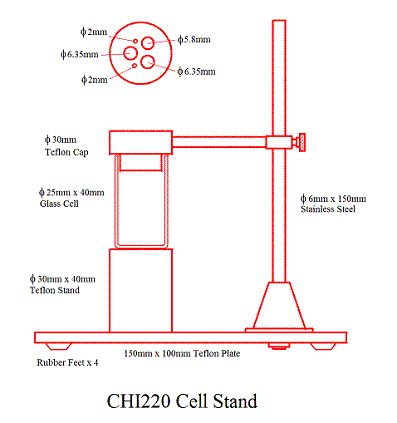

4. Made of stainless steel and Teflon (see figure below).  Not remote-controllable. Four glass cells are included.

5. Not a replacement part for the CHI220 Cell Stand.
