CV Electrodes

ALS electrodes available from IJ Cambria Scientific



Product No. Description Price, £ Specification
010409 HOPG (basal plane) 300 OD: 6 mm ID: 3.0 mm
010410 HOPG (edge plane) 300 OD: 6 mm ID: 3.0 mm
010395 Carbon paste electrode 205 OD: 6 mm ID: 3.0 mm
010231 PDE Palladium electrode 285 OD: 6 mm ID: 1.6 mm
010235 Nickel electrode 295 OD: 6 mm ID: 1.5 mm
010236 Copper electrode 275 OD: 6 mm ID: 1.6 mm
010377 Steel electrode 275 OD: 6 mm ID: 1.6 mm

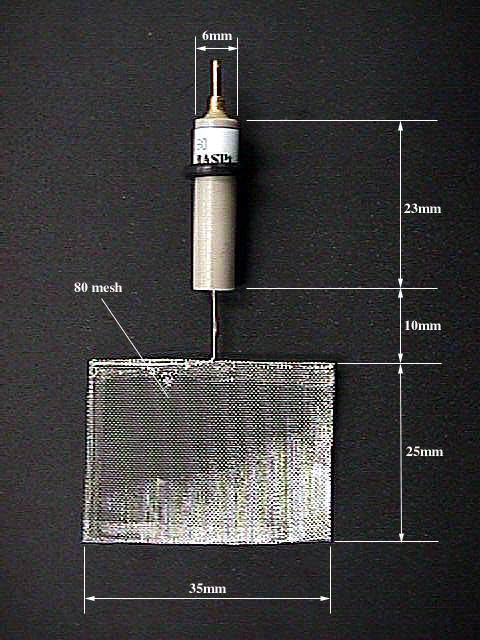

010407 Pt gauze electrode 750 80 mesh
Microelectrode
010397 Carbon fibre microelectrode 315 OD: 4 mm  ID: 7 um
010368 Carbon fibre microelectrode 295 OD: 4 mm  ID: 33 um
010376 Platinum microelectrode 295 OD: 4 mm ID: 15 um
010373 Platinum microelectrode 295 OD: 4 mm ID: 100 um
Custom made electrodes
010415 Platinum electrode 190 OD: 3 mm ID: 1.6 mm
010416 Gold electrode 190 OD: 3 mm ID: 1.6 mm
010417 Palladium electrode 190 OD: 3 mm ID: 1.6 mm
010420  Glassy Carbon electrode 180 OD: 3 mm ID: 1.0 mm
010422 Glassy Carbon electrode 255 OD: 10 mm ID: 5.0 mm
010425 Platinum electrode 355 OD: 10 mm  ID: 5.0 mm
010412 Copper microelectrode 295 OD: 4 mm ID:  25 um
010413 Tungsten microelectrode 315 OD: 4 mm ID:  10 um
010414 Nickel Microelectrode 305 OD: 4 mm ID:  100 um
010423 Gold electrode OD: 10 mm ID: 5 mm
010408 Gauze electrode Contact us 100 mesh

We may be able to custom manufacture other electrodes. For advice and a quotation if possible, please contact us at info@IJCambria.com

Click here for a typical electrode image

Click here for typical electrode dimensions

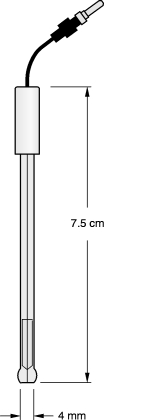

Click here for the dimensions of ALS microelectrodes

For the dimensions of grid type electrode click here

For dimensions of different carbon paste electrodes click here
