Model 1100B Series            <<Home

Power Potentiostat / Galvanostat

The Model 1100B series power potentiostat/galvanostat is designed for electrochemical applications that require relatively large current and high compliance voltage, such as battery, corrosion, electrolysis, and electroplating. The current range is ± 2 A. The compliance voltage is ± 25 V. The instrument contains a high speed digital function generator, a fast data acquisition system, filters for the current signals, iR compensation circuitry, a potentiostat, and a galvanostat (Model 1140B). The potential control range is ± 10 V. The function generator can update at a 10 MHz rate, and the maximum sampling rate is 1 MHz at 16-bit resolution. The 1100B series is capable of measuring current down to tens of picoamperes. The steady state current of a 10 μm disk electrode can be readily measured without external adapters. The instrument provides very wide dynamic range on experimental time scales. For instance, the scan rate in cyclic voltammetry can be up to 1000 V/s with a 0.1 mV potential increment or 5000 V/s with a 1 mV potential increment. The potentiostat/galvanostat uses a 4-electrode configuration, allowing it to be used for liquid/liquid interface measurements and eliminating the effect of contacting resistance of connectors and relays for high current measurements. The data acquisition systems allow an external input signal (such as spectroscopy signals to be recorded simultaneously with electrochemical data).

The model 1100B series is the upgrade from the model 1100/1100A series. The instrument utilizes FLASH memory, allowing instrument updates to be distributed by e-mail instead of the shipment of an EPROM chip.

The 1100B series has a USB port (default) or a serial for data communication with the PC. You can select either USB or serial port (but not both) by changing the switch setting on the rear panel.

A 16-bit highly stable bias circuitry is added for current or potential bias. This allows wider dynamic range is ac measurements. It can also be used to re-zero the dc current output.

We provide several different models in the 1100B series. The following table compares the different models. Other than what is listed, the specifications and features of these models are identical. Models 1100B/1110B are basic models. while Models 1140B is more advanced models with a galvanostat.







Specifications



Potentiostat

Galvanostat (Model 1140B)

Potential range:  -10 to 10 V

Potentiostat rise time:  < 2 μs

Compliance voltage:  ± 26 V

3- or 4-electrode configuration

Current range: ± 2 A

Reference electrode input impedance:  1x1012 ohm

Sensitivity scale:  1x10-12 - 0.1 A/V in 12 ranges

Input bias current:  < 100 pA

Current measurement resolution:  < 1 pA

Potential update rate:  10 MHz

Data acquisition: 16 bit @ 1 MHz

External voltage signal recording channel

External potential input

Automatic and manual iR compensation

Potential and current analog output

RDE control voltage output:  0-10V (1130B and up)

 CV and LSV scan rate:  0.000001 to 5000 V/s

Potential increment during scan:  0.1 mV @ 1000 V/s

CA and CC pulse width:  0.0001 to 1000 s

CA and CC Steps: 320

DPV and NPV pulse width:  0.001 to 10 s

SWV frequency:  1 to 100 kHz

Automatic potential and current zeroing

Signal low-pass filters, covering 8-decade frequency range, Automatic and manual setting

Potential and current analog output

Cell control: purge, stir, knock

Automatic potential and current zeroing

Current low-pass filters, covering 8-decade frequency range, Automatic and manual setting

Flash memory for quick software update

USB or Serial port selectable for data communication

Maximum data length:  128K-4096K selectable

Chassis dimension:  14.25”(W) x 9.25 ”(D) ´ 4.75”(H)

Weight:  17 Lb.





Comparison of 1100B Series Models



Functions 1100B 1110B 1120B 1130B 1140B

Cyclic Voltammetry (CV)

●

●

●

●

●

Linear Sweep Voltammetry (LSV) &

●

●

●

●

●

Staircase Voltammetry (SCV) #,&







●

●

Tafel Plot (TAFEL)







●

●

Chronoamperometry (CA)

●



●

●

●

Chronocoulometry (CC)

●



●

●

●

Differential Pulse Voltammetry (DPV) #,&



●

●

●

●

Normal Pulse Voltammetry (NPV) #,&



●

●

●

●

Differential Normal Pulse Voltammetry (DPNV)#,&









●

Square Wave Voltammetry (SWV) &





●

●

●

AC Voltammetry (ACV) #,&,$







●

●

2nd Harmonic AC Voltammetry (SHACV) #,&,$







●

●

Amperometric i-t Curve (i-t)







●

●

Differential Pulse Amperometry (DPA)









●

Double Differential Pulse Amperometry (DDPA)









●

Triple Pulse Amperometry (TPA)









●

Bulk Electrolysis with Coulometry (BE)

●



●

●

●

Sweep-Step Functions (SSF)









●

Multi-Potential Steps (STEP)









●

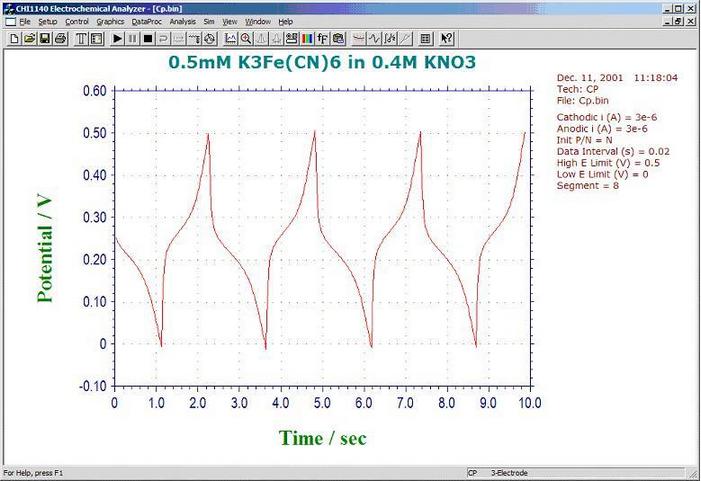

Chronopotentiometry (CP)









●

Chronopotentiometry with Current Ramp (CPCR)









●

Multi-Current Steps (ISTEP)









●

Potentiometric Stripping Analysis (PSA)









●

Open Circuit Potential - Time (OCPT)

●

●

●

●

●


Galvanostat









●

RDE control (0-10V output)











Full version of CV simulator







●

●

Limited version of  CV simulator

●

●

●





iR Compensation

●

●

●

●

●

External Potential Input

●

●

●

●

●

Auxiliary Signal Measurement Channel

●

●

●

●

●

#: Corresponding polarographic mode can be performed.

&: Corresponding stripping mode can be performed.
