Spectroelectrochemical cell Instruction         [HOME]

Our flow cell consists of plastic cell holder, working electrode, gasket and cover plate; please see below diagram.

Cell  volume is controlled by thickness of gasket, and it is made of silicone rubber.

Dimension of cell holder size is described into the following picture (fig2), and it was designed for optical spectroscopy.







                                                    Fig. 1 The cell setup

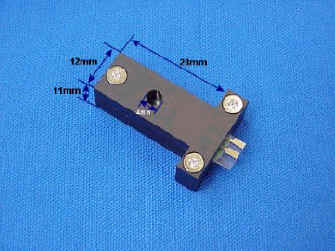

               Fig.2 cell holder
