Model 800D Series Specification

Specifications

Potentiostat / Bipotentiostat:
  • Zero resistance ammeter
  • 2, 3, or 4-electrode configuration
  • Floating (isolated from earth) or earth ground
  • Maximum potential: ±10 V for both channels
  • Maximum current: ±10 mA
  • Compliance Voltage: ±13 V
  • Potentiostat rise time: < 2 μs
  • Applied potential ranges: ±3.276 V, ±6.553 V, ±10 V
  • Applied potential resolution: 0.0015% of potential range
  • Applied potential accuracy: ±1 mV, ±0.01% of scale
  • Applied potential noise: < 10 μV rms
  • Measured current range: ±10 pA to ±0.001 A in 9 ranges
  • Current resolution: 0.0015% of current range, min. 0.3 fA
  • Current meas. accuracy: 0.2% if &geq; 1e-6 A/V, else 1%
  • Input bias current: < 10 pA
Galvanostat:
  • Galvanostat applied current range: 3 nA – 10 mA
  • Applied current resolution: 0.03% of applied current range
Electrometer:
  • Reference electrode input impedance: 1e12 ohm
  • Reference electrode input bias current: &leq; 10 pA @ 25°C
Waveform Generation and Data Acquisition:
  • Fast waveform update: 1 MHz @ 16-bit
  • Fast data acquisition: 16-bit ADC, 1,000,000 samples/sec
  • External signal recording channel
Experimental Parameters:
  • CV and LSV scan rate: 0.000001 to 5 V/s
  • CA and CC pulse width: 0.0001 to 1000 sec
  • CA minimum sample interval: 1 μs
  • CC minimum sample interval: 1 μs
  • True integrator for CC
  • DPV and NPV pulse width: 0.001 to 10 sec
  • SWV frequency: 1 to 100 kHz
  • i-t sample interval: minimum 1 μs
  • ACV frequency: 0.1 to 10 kHz
  • SHACV frequency: 0.1 to 5 kHz
Other Features:
  • Automatic and manual iR compensation
  • External potential input
  • Potential and current analog output
  • Programmable potential filter
  • Programmable signal filter
  • RDE control output (Model 840D and up): 0-10V (corresponding to 0-10000 rpm), 16-bit, 0.003% accuracy
  • Flash memory for quick software update
  • Serial port or USB port selectable for data communication
  • Cell control: purge, stir, knock
  • Maximum data length: 256K-16384K selectable
  • CV simulation and fitting program, user defined mechanisms
  • Dimension: 14.25”(W) x 9.25”(D) x 4.75”(H)
  • Weight: 12 lb.
flow cell

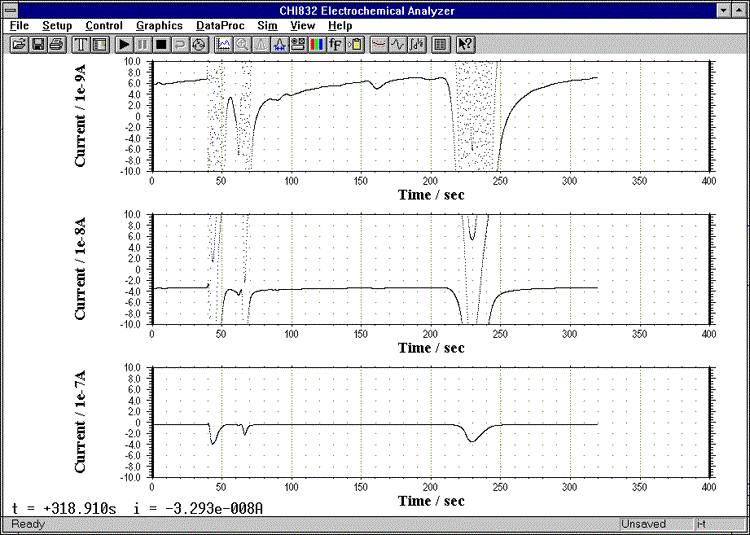

Real time data display for flow cell detection.
